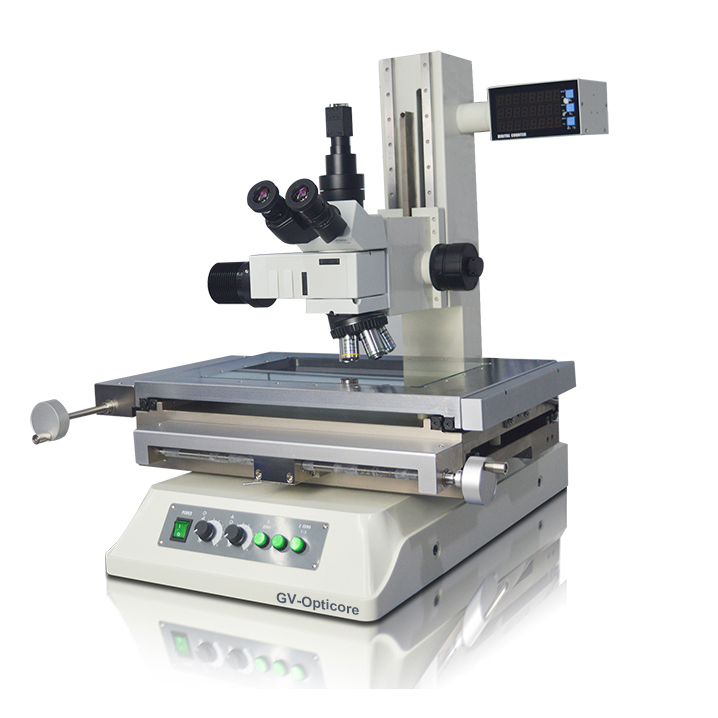

YX-3020S is a traditional measuring instrument that uses a front-facing camera in manual mode to capture images. It locates on the surface of the object through manual movement, acquires boundary information, and performs manual measurement. It is mainly used in scenarios with multiple varieties, small batches, and objects with indistinct contour imaging.

1. High-stability cast iron worktable with stable precision, equipped with a quick-moving mechanism for easy movement.
2. Suitable for scenarios with frequent replacement of measured part varieties, manual measurement mode is convenient and fast.
3. Integrated structural design for convenient transportation and operation by staff.
4. Z-axis is equipped with a servo control system, enabling fast and convenient Z-axis movement and auto-focusing.
5. Optional external accessories: probe measurement, coaxial light, navigation CCD
6. Optional working strokes: 200X100mm, 400X300mm, 500X400mm,
Height measurement range options: 200mm, 250mm, 300mm, 350mm, 400mm are all available.

1. Simple operation for engineers, no complex training required;
2. Intuitive software interface, easy for anyone to operate and measure;
3. Evaluate measurement dimension deviations immediately on the measurement site and output customized measurement data.

1. Manual mode software operation for convenience and efficiency.
2. Provides various extraction and analysis tools, including arbitrary points, lines, circles, fitted lines, fitted circles, tangent lines; geometric tolerances: position, profile, roundness, straightness.
3. Automatically outputs SPC analysis reports, including statistical values (such as CA, CP, CPK, etc.) and control charts (such as X-R chart, X-S chart, Xmed-R chart, X-MR chart).
